SEG-P Properties: Symbols

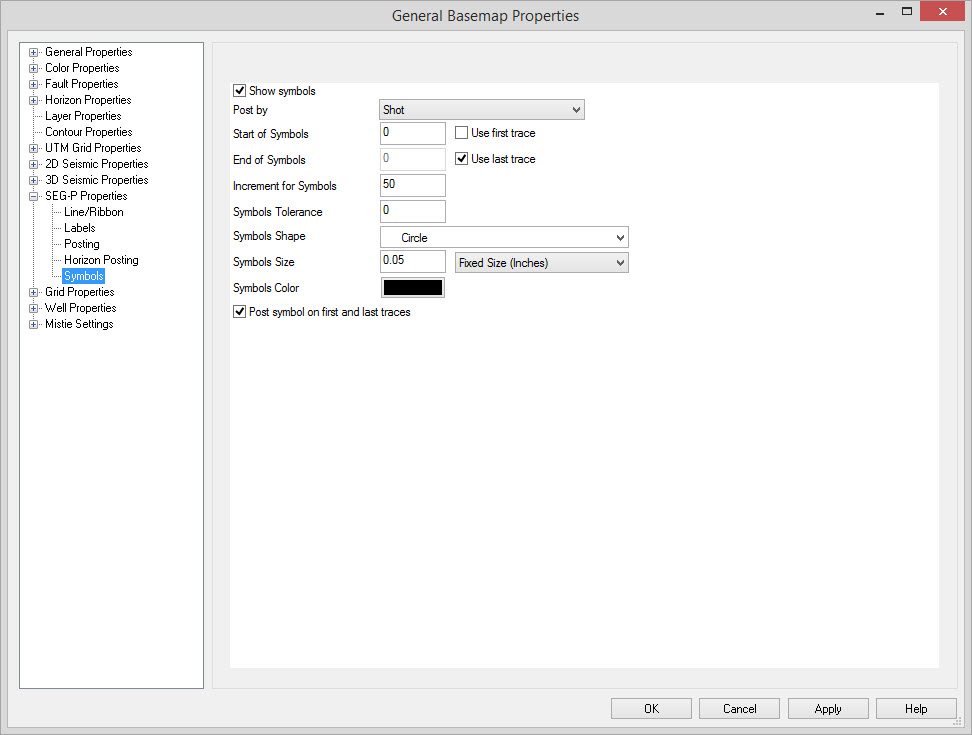

Use this page to define the symbols posted along a SEG-P line. To
define the text posting see the2D
Posting page.
Enable Symbols
Show Symbols: Toggle on and off the symbols
for SEG-P lines.
Symbol Parameters
Post By: Select
how the symbols are
displayed on SEG-P lines. Shot, CDP, and trace offset are
the available selections.
Start of Symbols, End of Symbols, Increment for Symbols: The starting, ending, and increment for symbols. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Symbols Tolerance: The allowed variance from the specified post by value where symbols will still post. For example, if the symbols were set up to display at shot 100 and the nearest shot is 100.05, the symbol will still appear if the posting tolerance is more than .05.
Symbols Shape, Symbols Size, Symbols Color: These define how the symbols will appear. Select the shape, specify the size, and select a color.
Post Symbol On First And Last Traces: This always posts the values present on the first and last traces of the line.
Start of Symbols, End of Symbols, Increment for Symbols: The starting, ending, and increment for symbols. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Symbols Tolerance: The allowed variance from the specified post by value where symbols will still post. For example, if the symbols were set up to display at shot 100 and the nearest shot is 100.05, the symbol will still appear if the posting tolerance is more than .05.
Symbols Shape, Symbols Size, Symbols Color: These define how the symbols will appear. Select the shape, specify the size, and select a color.
Post Symbol On First And Last Traces: This always posts the values present on the first and last traces of the line.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
